Monoblock airco koeling en verwarming
WDH 224 PTC
Geen buitenunit
Slim verbinden
Koelfunctie
Comfortabele warmte

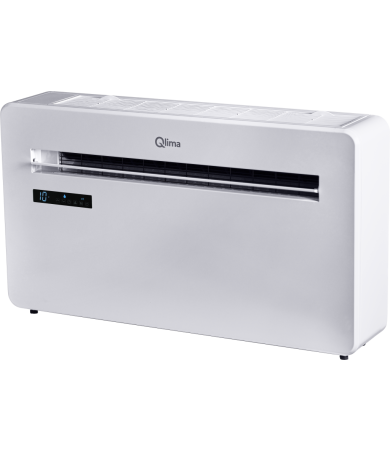

Monoblock airco koeling en verwarming WDH 224 PTC wit
Monoblock airco koeling en verwarming WDH 224 PTC wit
Beschrijving
Alle voordelen
- Geen buitenunit
- Slim verbinden
- Koelfunctie
- Comfortabele warmte
- Ontvochtigingsfunctie
- 3D Inverter technologie
- Instelbare ventilatorsnelheid
- Monoblok-warmtepomp
Specificaties
Kleur Wit
Land van herkomst China
Model WDH 224 PTC
Garantie 2 jaar
EAN code 8713508794785
Instelbare luchtstroom - horizontaal Ja
Airco-functie Omkeerbaar
Luchtkanaal Ja
Luchtstroom - hoog modus 520 m³/u
COP-verhouding 3.6 W/W
Ontdooifunctie Ja
Ontvochtigingscapaciteit bij 27 ° c/60% RH 38 l/24 u
Ontvochtigingscapaciteit bij 32 ° c/80% RH 17.2 l/24 u
Ontvochtigingsmodus Ja
Diameter luchtkanaal 180 mm
Kanaliseerbaar dubbel
Economische modus Ja
EER-klasse A
EER ratio 2.6 W/W
Energieverbruik - stand-by modus 1 W
Ventilator modus Ja
Ventilatorstanden 3 stand(en)
Voor ruimtes tot 58 - 78 m³
Inbegrepen - afstandsbediening Ja
Aantal timerinstellingen 24
Temperatuurbereik -5~35 °C
Beschermingsklasse IPX0 IPxx
Nominale stroom koeling 5 A
Nominaal vermogen koelen (max.) 2.45 kW
Nominaal vermogen verwarmen (max.) 2.63 kW
Koudemiddel type / GWP / Vulling R290 / 3 / 298 R/g
Smart Tuya
Geluidsvermogen op (SWL) 59 dB
Bereik thermostaat 16~30 °C
Timer-functie Ja
Turbo-functie Nee
Afmetingen (b x d x h) 1000 x 205 x 585 mm
Afmetingen verpakking (w x d x h) 112 x 34 x 66 cm
Gewicht - unit 44.5 kg
Bruto gewicht 50.5 kg
Handleidingen en documentatie
Handleidingen (2)
Product specificaties (5)
Productreviews
Spare parts
Spare parts (13)
| EAN | Name |
|---|---|
| 8713508786889 | Luchtfilter MBACCV101910 |
| 8713508004686 | Luchtrooster set MBACCV103554 |
| 8713508797137 | Display printplaat MBACCV103009 |
| 8713508797144 | Elektronische expansieklep MBACCV103010 |
| 8713508795034 | Ventilator (compleet) MBACCV102852 |
| 8713508797168 | Hoofdprint MBACCV103012 |
| 8713508793061 | Buiten condensormotor +ventilator MBACCV102697 |
| 8713508004693 | Afdichtstrip MBACCV103555 |
| 8713508787336 | Spatwielmotor MBACCV101994 |
| 8713508797175 | Stappenmotor MBACCV103013 |
| 8713508004709 | Afdekgoot 450x600mm |
| 8713508006314 | Waterniveau sensor MBACCV103698 |
| 8713508793139 | Wi-Fi print MBACCV102704 |
Kenmerken en voordelen
Kenmerken en voordelen
-
Ontvochtigingsfunctie
-
3D Inverter technologie
-
Instelbare ventilatorsnelheid
-
Monoblok-warmtepomp
